Insulaite Pallet Covers
Tested & Validated
- In climate chamber, direct sunlight, and as per ISTA 7D standards.
- In worst case scenario.
- In hot summers during the month of May in India.
Low Thermal Conductivity (λ)
Reducing thermal conductivity, multiple layers of insulation reduce sudden spikes in
temperature.
Sealed, not sewed
Customized validation
Pure Aluminium foil as a reflector and insulator
Thermal Blankets for every season
- Thinnest from 0.30 MM to thickest 20 MM.
- R-value from 0.0051 to 0.51.
- Reduce your annual cost by choosing seasonal grades.
NABL certified test reports
We are equipped with NABL certified material test reports, User manuals, Validation
reports.
Switch from bulky Pallet Shippers
High customer satisfaction & retention
- We are audited by well known pharmaceuticals.
- We have 10 + years of experience serving the industry.
- 98% of customer retention ratio.

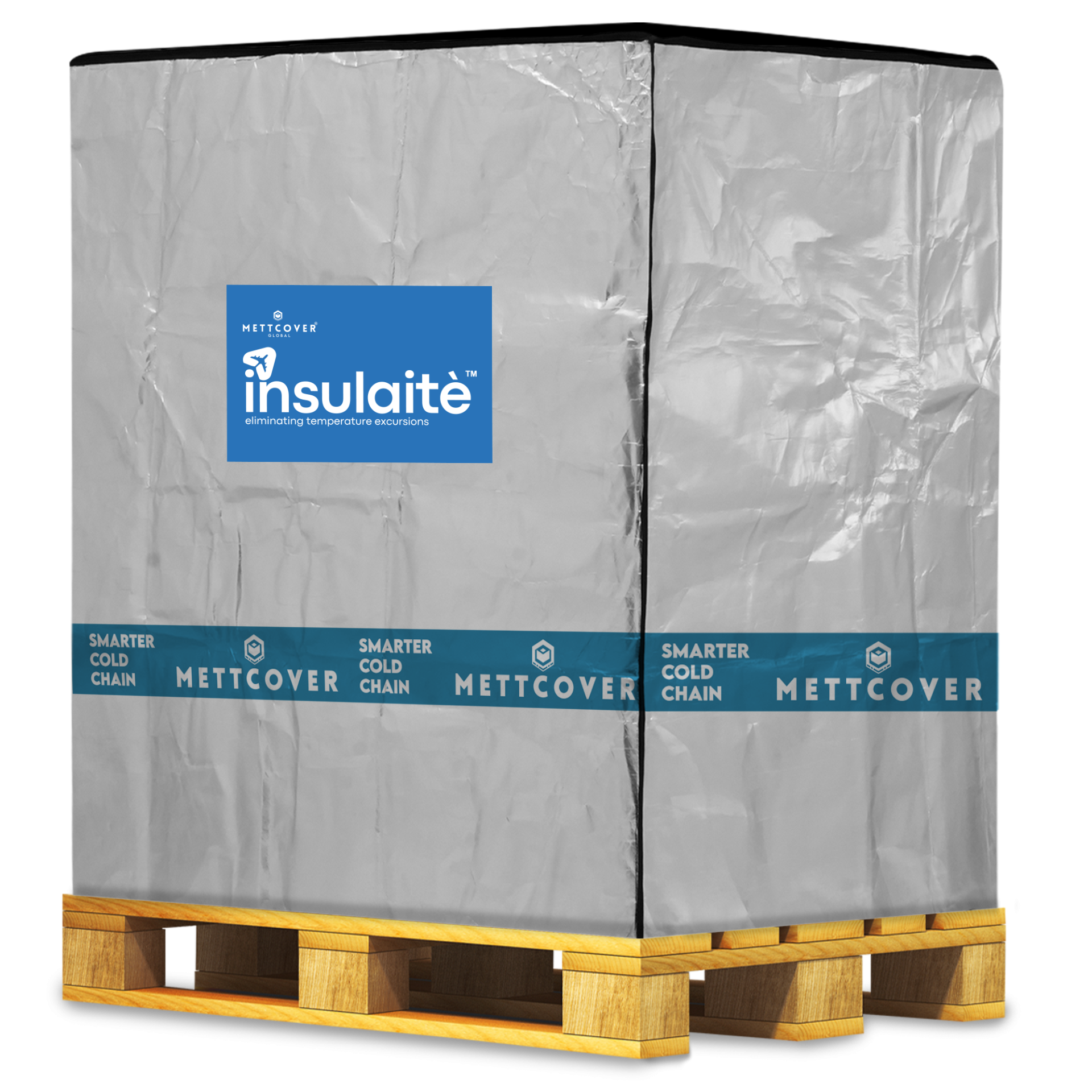

PAF9O1
- Minimizes temperature excursions of pharmaceuticals and perishables.
- Radiation and conduction heat transfer are reduced by the outer Pure Aluminium foil.
- The inside layer of Pure aluminium foil reduces the amount of energy escapes from the product mass to the outside environment.
- Best suitable for Shorter Tarmac transfer duration.
- Tested and validated for 15°C to 25°C product profile during hot summer conditions.
Key Features
Best suitable for : Air shipments
Product temp. profile : 150C to 250C
External temp. profile : Hot Summer
Tarmac transfer duration : Shorter (2-3 hours)
Usage frequency : Single use
Reflectivity : 97%
Very compact when folded
3 Layered, Both sided pure aluminum foil
Thickness : 0.32 mm
Weight : 180 GSM
Water Resistant

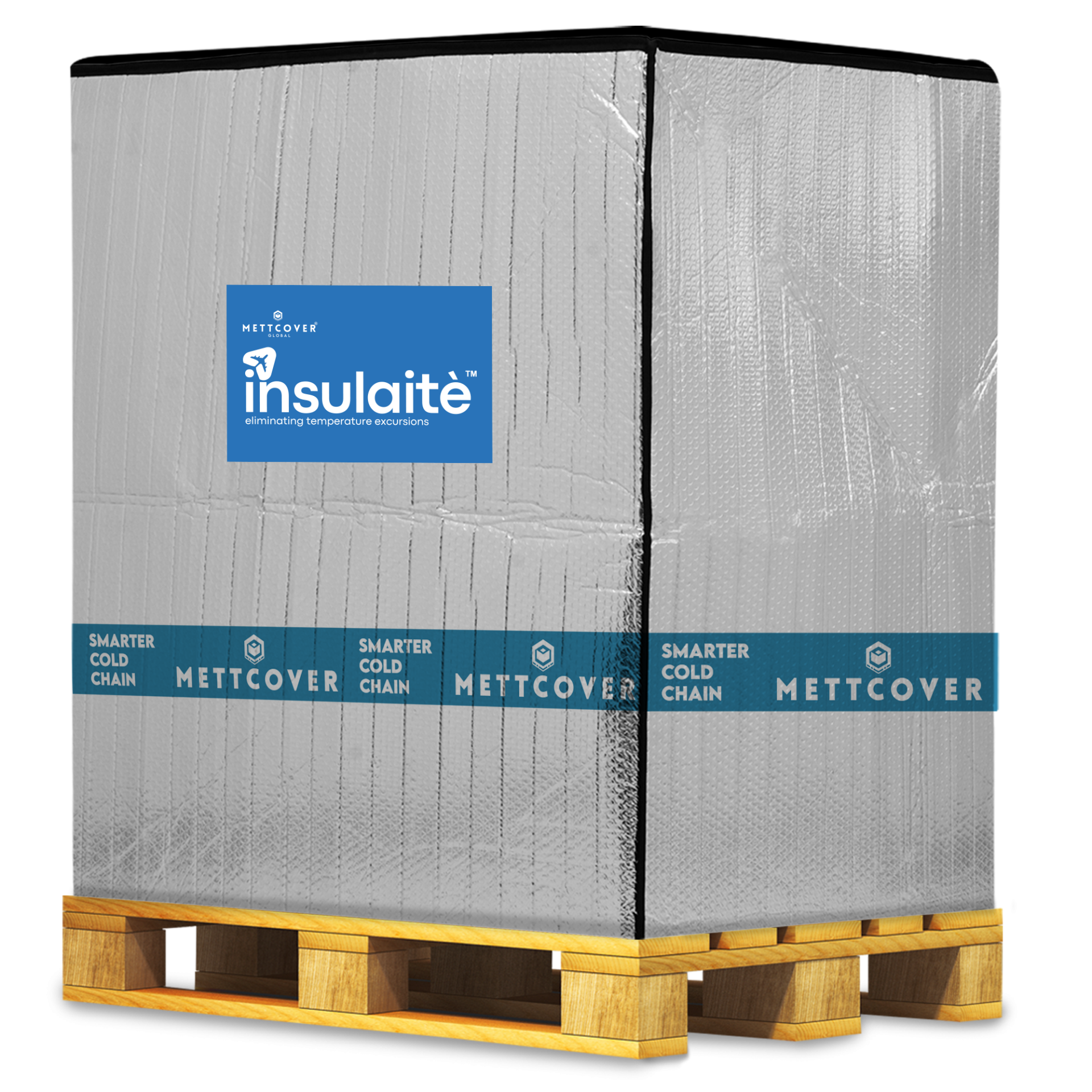

BUB9O1 Plus
- Inner and outer reflective Pure Aluminium layers reduces the radiation heat transfer.
- The middle insulation air bubble layer reduces conduction heat transfer between the weather and product mass.
- Enhance the time to reach at Thermal Equilibrium by protecting with highly insulated Thermal Blanket.
- Made with Duel lock technology to prevent air leakage and thermal shock.
- Tested and validated for 15°C to 25°C product profile during hot summer conditions.
Key Features
Best suitable for : Air shipments.
Product temp. profile : 150C to 250C.
External temp. profile : Hot Summer.
Tarmac transfer duration : Longer (5-6 hours).
Usage frequency : Single use.
Emissivity : 0.041%
3 Layered, Both sided pure aluminum foil & single layer of bubble
Thickness : 4 mm
Weight : 260 GSM
Water Resistant
BUB9O2 Plus
- Prevent sudden temperature spikes during long hours tarmac transfers in hot airports like India and Middle East.
- Inner and outer reflective Pure Aluminium layers reduces the radiation heat transfer.
- The middle double insulation air bubble layers reduces conduction heat transfer between the weather and product load.
- A higher R-value helps to extend the time of protection.
- Enhance the time to reach at Thermal Equilibrium by protecting with highly insulated Thermal Blanket.
Key Features
Best suitable for : Air shipments
Product temp. profile : 150C to 250C
External temp. profile : Hot Summer & Cold Winter
Tarmac transfer duration : Longer (6-8 hours)
Usage frequency : Single use
Reflectivity : 97%
Emissivity : 0.041%
4 Layered, Both sided pure aluminum foil & double layers of bubble
hickness : 8 mm
Weight : 370 GSM
Water Resistant

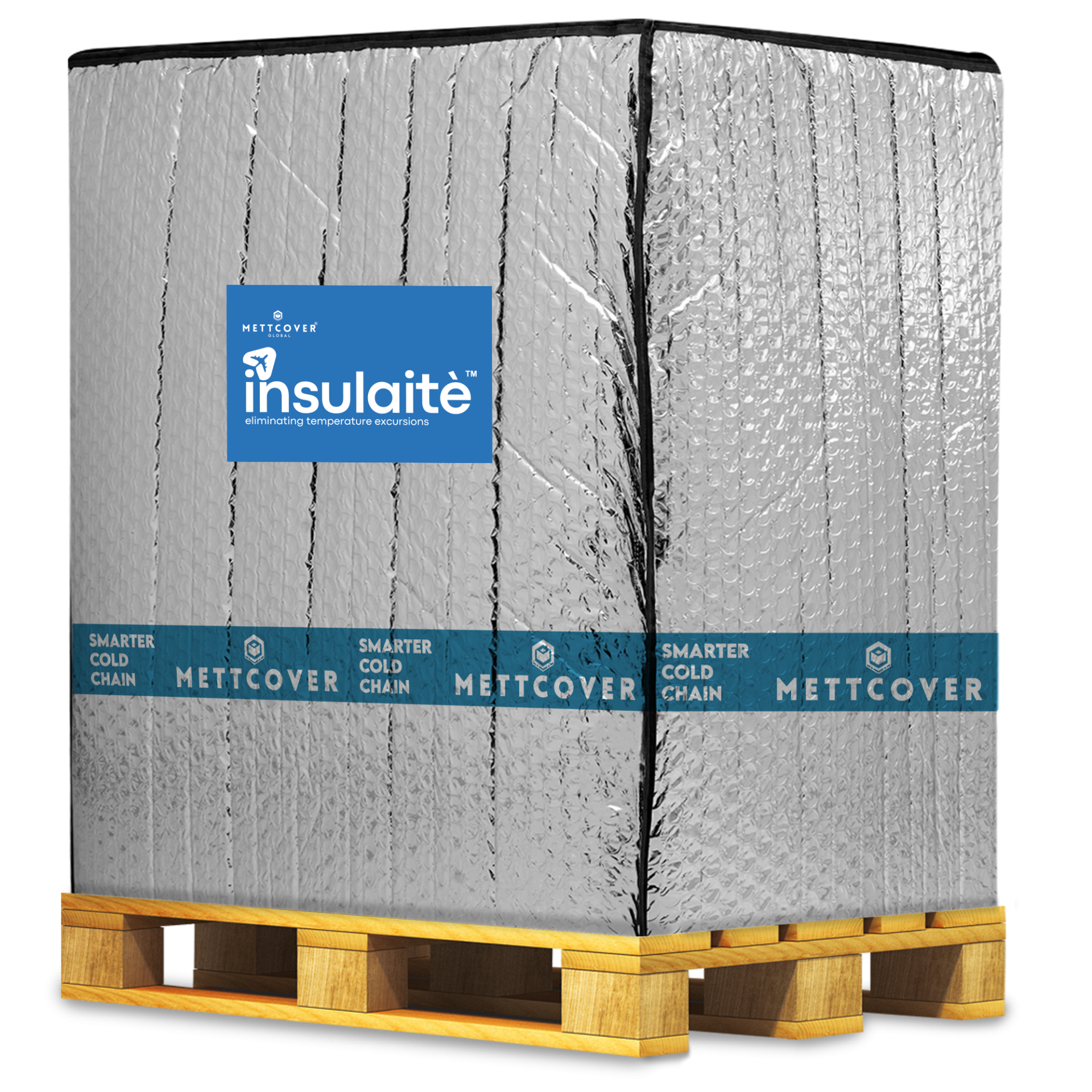

XPROZ
- Inner and outer reflective Pure Aluminium layers reduces the radiation heat transfer.
- The middle 20 MM insulation air bubble layers reduces conduction heat transfer between the weather and product mass.
- Very less Thermal Conductivity, helps to survive the product mass at extreme hot or cold weather conditions.
- Save your cost by replacing the use of bulky Pallet Shippers for precious 15°C to 25 °C shipments.
- Best suitable for hot airports like India & Middle East & cold airports like New York.
Key Features
Best suitable for : Air shipments.
Product temp. profile : 150C to 250C & 20C to 80C.
External temp. profile : Hot Summer & Cold Winter.
Tarmac transfer duration : Longer (8-10 hours).
Usage frequency : Single use.
Reflectivity : 97%.
Emissivity : 0.041%
4 Layered, Both sided pure aluminum foil & double layers of bubble
Thickness : 20 mm
Weight : 450 GSM
